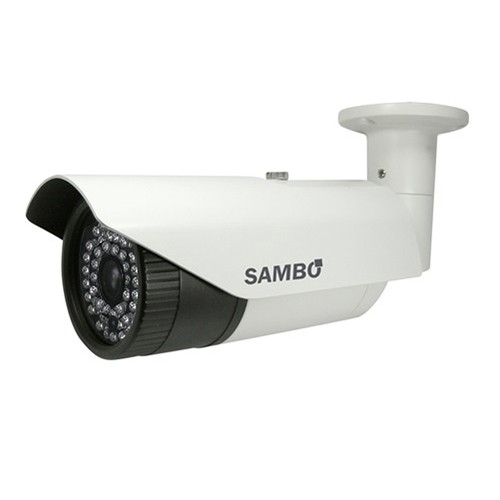

Sambo AHD Camera 4M ZDI130V1F

  • Dòng sản phẩm: Sambo
  • Mã sản phẩm: ZDI130V1F
  • Số lượng sản phẩm trong kho: 100
  • 0 VNĐ

Sambo AHD Camera 4M ZDI130V1F AHD Camera 4M ZDI130V1F ZDI130V1F

Sambo AHD Camera 4M ZDI130V1F

4M AHD CMOS Sensor
1440P AHD Video Output (AHD Transmission Max.300M)

1440P AHD OUTPUT
D-WDR / 2D-DNR@AHD
Varifocal Lens : 2.8~12mm DC IRIS
1440P AHD output
COLOR : 1 Lux / BW : 0.5Lux,
Defog, D/N, Mega Lens, White Balance
Power : DC 12V(±30%)
Built-in OSD Key

-Option
Dual Voltage
Heater

DIMENSION

SPECIFICATION

NTSC PAL
Image Device 1/3" SONY 1.3Megapixel CMOS
Total pixels 1312(H) x 1069(V) 1.4M pixels
Effective Pixels 1305(H) x 1049(V) 1.37M pixels
Scanning System Progressive
Resolution AHD(720P)_1000TVL, CVBS(1280H)_950TVL
Minimum Illumination
(F1.2, 30IRE)
Color : 0.08 Lux, BW : 0.02 Lux,
(Color sens-up : 0.008Lux, BW sens-up : 0.002Lux)
Video Output AHD (To Right@key OSD)
CVBS (To Left@key OSD)
S/N Ratio More than 50dB (AGC off)
LENS Mega f=2.8~12mm DC IRIS ICR Lens
AGC Off/0 - 15
Shutter Speed AUTO/MANUAL(1/50(60) ~ 1/50,000 sec)
SENS-UP Off/X2 - X30
Brightness 0 - 100
Backlight Off/BLC/HSBLC
D-WDR Off/0~8
DEFOG Off/Auto
Day & Night Auto / Color / B&W / EXT
White Balance ATW / AWC-SET / INDOOR / OUTDOOR / Manual / AWB
2DNR CVBS │ Off / Low / Middle / High
3DNR   AHD │ Off / Low / Middle / High
Mirror Off / MIRROR / V-FLIP / ROTATE
Shapness Off / Auto (LEVEL/START AGC/End AGC/RETURN)
Privacy Masking Area 1~4
Motion Detection Area 1~4
Language English/Chinese/Germany/French/Italian/Spanish/Polish
Russian/Portu/guese/Netherlands(Dutch)/Turkish
IR LED 30 IR LEDs, Max.30M
Power input DC 12V(±30%)
Operation Temperature -10℃ - +50℃, RH95% Max
Storage Temperature -20℃ - +60℃, RH95% Max
Dimension Φ77 X 186 mm
